Containers IBM Injection Blow Molding Machine For Food Packaging
IBM Injection Blow Molding Machine Description
1. Injection mold, blow molding model cavity, neck block activity design, oil circuit, water circuit special design to ensure that the tube also bottle size stability. And easy to replace.
2. Optimized heat circulation system, bottle embryo design, to ensure that the gram deviation and wall thickness deviation is minimized.
3. Special structure mandrel, fast molding cycle, good cooling effect of mandrel.
ZQ Series Injection Blow Mould Application
Cosmetic Packaging: The precision and versatility of IBM machines make them ideal for producing cosmetic containers, jars, and tubes.
Industrial Packaging: IBM machines can be used in the production of industrial packaging solutions like drums, canisters, and industrial containers.
Pharmaceutical Packaging: IBM machines are employed in the pharmaceutical industry for manufacturing various types of packaging for medicines, vitamins, and supplements.
IBM Injection Blow Molding Machine Details
| Item | Unit | ZQ135 |
| Injection System |
| Screw Diameter | mm | 70 |
| Screw L/D | % | 22:01 |
| Injection weight | g | 650 |
| Heating power | KW | 30 |
| Number of barrel zone | | 6+N |
| Injection stroke | mm | 200 |
| Clamping System |
| Clamping force of injection | KN | 1350 |
| Opening stroke for injection | mm | 140 |
| Clamping force of blowing | KN | 200 |
| Opening stroke for blowing | mm | 140 |
| Lifing height of rotary table | mm | 70 |
| Mould |
| Max.Platen size(L*W) | mm | 1300*500 |
| Mold thickness | mm | 280 |
| Dia.of bottle | mm | 120 |
| Bottle height | mm | 220 |
| Suitable bottle height | mm | 1-1000 |
| Stripping stroke | mm | 280 |
| Hydraulic system |
| Hydraulic Pressure | Map | 14 |
| Motor power | KW | 37+37 |
| Dry cycle | S | 4 |
| Total Power | KW | 95 |
| Operating power | % | 52-70 |
| Others |
| Min.Air pressure of compressed air | MPa | 0.7-1.2 |
| Compressed air capacity | M³/min | 0.7 |
| Water flowage | M³/h | 4 |
| Cooling water pressure | MPa | 0.3-0.4 |
| Dimension(L*W*H) | M | 5.5*2*2.4 |
| Net weight | Ton | 18 |
| Bottle Volume |
| Cavity Number | Machine Model | 10ml | 30ml | 60ml | 100ml | 250ml | 500ml | 1000ml |
| | ZQ40 | 9 | 8 | 6 | 4 | 3 | 2 | 1 |
| | ZQ60 | 14 | 12 | 10 | 8 | 5 | 3 | 2 |
| | ZQ80 | 20 | 18 | 14 | 12 | 8 | 5-6 | 3-4 |
| | ZQ110 | 24 | 22 | 18 | 14 | 10 | 8 | 6 |
| | ZQ135 | 30 | 26 | 22 | 18 | 14 | 10 | 8 |

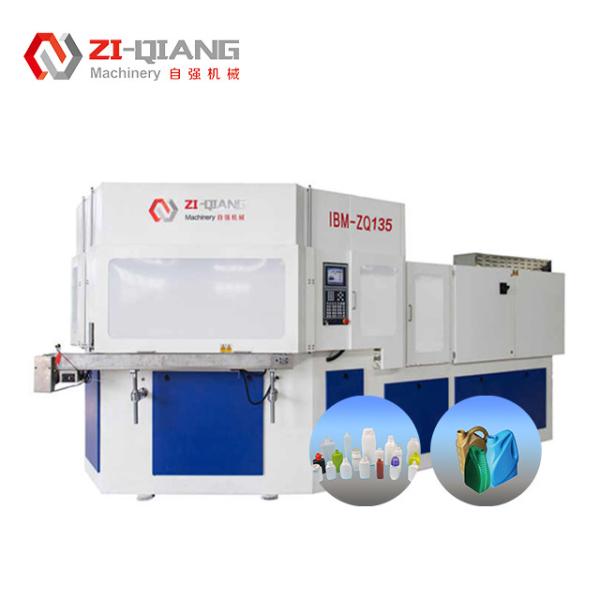

ZQ135 IBM Injection Blow Molding Machine :
ZIQIANG MACHINE FACTORY :
